Jewel Labs

Hard tech for the diamond trade.

The first of its kind

ML Automated Diamond Grading & Assorting Engine

Stones go in the hopper. Cameras and a spectrometer read each one under known light, a model grades it, and an actuator drops it in the right bin. Every stone leaves with a record, and the EU filing is built from that record.

Today this is done by eye, one stone at a time, so the same stone gets different grades from different people.

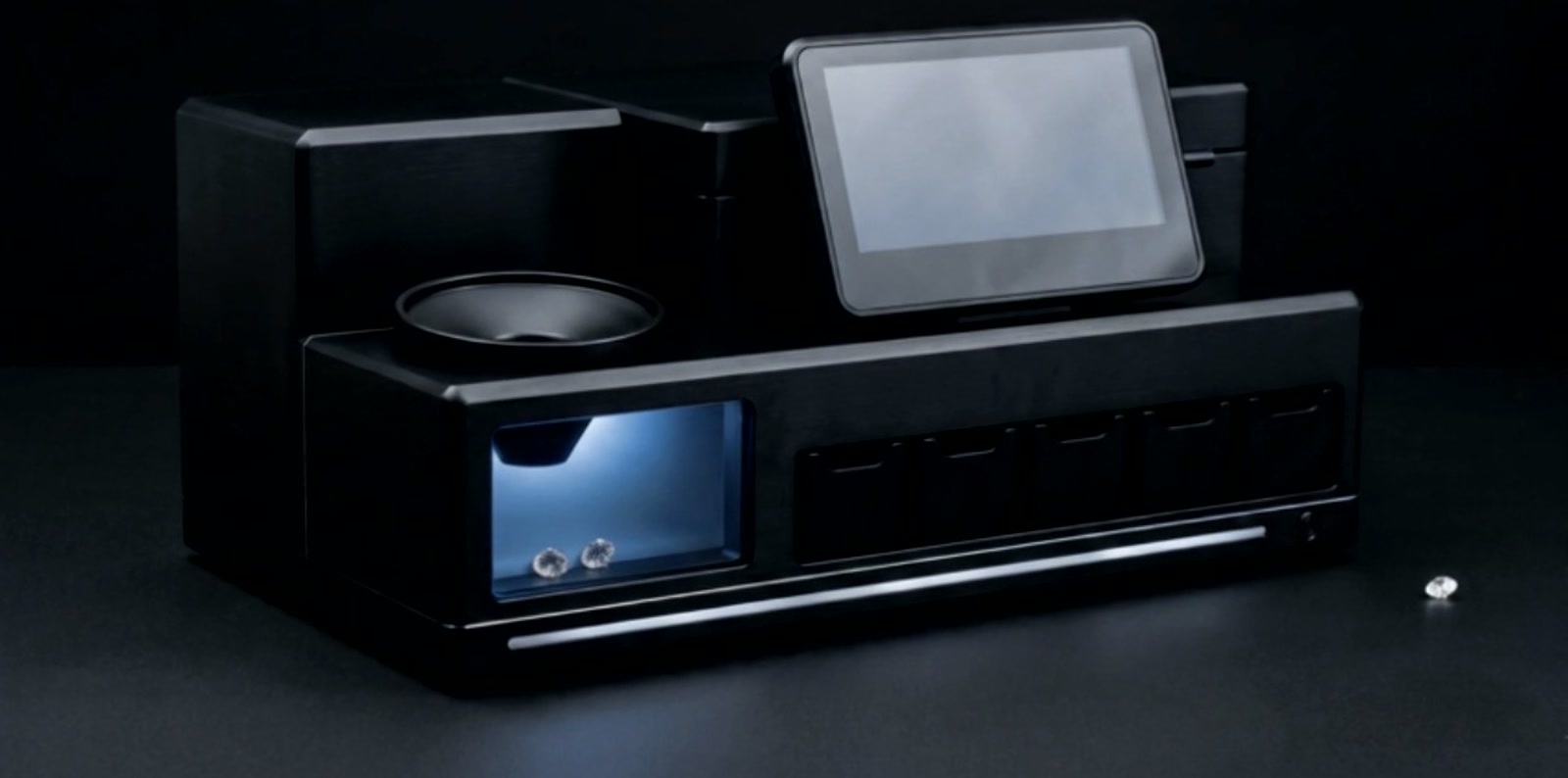

The desk grading machine: a feed hopper, a touchscreen, a lit scanning chamber with stones inside, and a row of sorting bins along the front.
Feed hopper, sealed chamber, sorting bins. Industrial design render, machine in development.
Software
Running today
Machine
In development

One stone, read.

Sealed chamber, known light, the same answer every time.

One stone under the 365 nm pass, which is how fluorescence is read.
Chamber

Reading

  • Carat0.164 ct
  • ColourG
  • ClarityVS2
  • CutExcellent
  • Table57.0%
  • Depth61.4%
  • FluorescenceFaint blue
  • OriginNatural

Illustrative of the record the system writes.

Specifications

Sensing

Imaging
Machine vision, 360 degree
Inclusions
Microscope camera
Geometry
Structured light, facet map
Material
Spectrometer, natural against CVD and HPHT
Fluorescence
365 nm pass
Weight
Load cell, 0.001 ct resolution

Machine

Illumination
Calibrated LED, brightfield, darkfield, coaxial, angled
Chamber
Sealed, no ambient light
Control
On-device, streams over HTTPS
Enclosure
Desk unit, carry-on size
Throughput
Design target, not yet measured
Calibration
Stored with every record

Record written for one stone

Record
JL-2026-0417739
Description
Natural diamond
Shape and cut
Round brilliant
Measurements
3.52 to 3.55 x 2.17 mm
Carat weight
0.164 ct
Colour
G
Clarity
VS2
Cut grade
Excellent
Polish
Excellent
Symmetry
Very good
Fluorescence
Faint blue
Table / Depth
57.0% / 61.4%
Crown / Pavilion
34.6° / 40.9°
Fingerprint
4f2a 91c7 0d55 b83e

Grades are stated on the GIA scale, which is what the trade prices against. Jewel Labs is not a laboratory and does not issue GIA reports. The software runs today. The machine is in development and the figures above are design targets.

How it works

How a stone becomes a filing.

One record, shared by every machine, from the cut plan to the filing.

  1. 01 Cut plan A rough scan goes to the model. It sends back where to cut.
  2. 02 Read The stone goes in the box and is graded in seconds.
  3. 03 Record One row per stone, readable by any other system.
  4. 04 File Checked against the certificate and invoice, then filed.

The filing.

Polished goods at or above 0.50 ct need a signed origin statement to enter the EU. We build it from the records, while the parcel is still on the desk.

Meridiaan Diamant NV

Due Diligence Statement on Diamond Origin

Council Regulation (EU) 833/2014, Article 3p, as amended

Internal ref. MD-2026-004417

14 March 2026

Importing company
Meridiaan Diamant NV
Address
Hoveniersstraat 22, 2018 Antwerpen
EORI / VAT number
BE0777888926
Customs office of import
BE Antwerp Diamond Office
HAWB number
BOMANR2603140088
Commodity code
CN 7102 39 00
Stones / weight
42 / 31.86 ct
Country of mining origin
Botswana

I, the undersigned, hereby declare that the non-industrial, natural, polished diamonds in this shipment were not mined, extracted, produced, or manufactured wholly or in part in the Russian Federation, notwithstanding whether such diamonds have been substantially transformed into other products outside of the Russian Federation.

I confirm that reasonable steps have been taken to verify the declared origin and to avoid aggregation of diamonds of unknown origin with traceable goods, and that these efforts and internal controls conform to the requirements and principles set out in the Guidance Note on Due Diligence Statement on Diamond Origin.

Evidence retained: Kimberley Process Certificate BW 0114872 for the parent rough, country of mining origin Botswana; country of last substantial processing India; supplier declaration dated 2 March 2026; commercial invoice INV-2026-0331; Jewel Labs grader records JL-2026-0417698 to JL-2026-0417739.

Katrien Vermeulen

Compliance Director. Signed 14 March 2026. (Company stamp if applicable.)

Specimen, not a valid customs document

Beyond grading

The records add up to a dataset.

Every scan stores images, spectra and proportions against the conditions they were measured under. At volume that is a diamond dataset nobody has. Quantum sensing and power semiconductors both run on diamond.

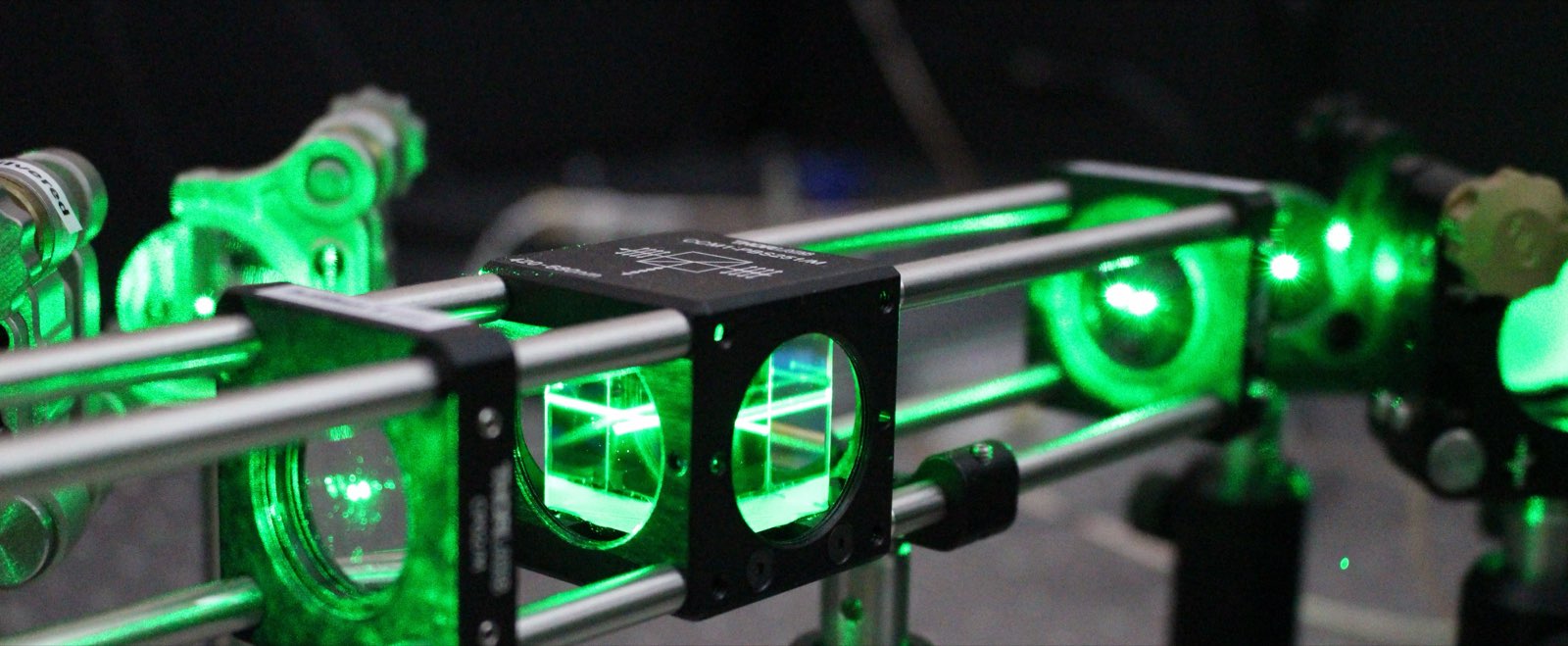

A green 532 nanometre laser passing through beamsplitter cubes on an optical bench in a quantum sensing laboratory.
A 532 nm laser addressing nitrogen vacancy centres in diamond. Photograph: Gavin Morley, CC BY-SA 4.0.
use.jewellabs.io What else diamond is for

See it read a parcel.

Bring a parcel you already know the grades on.

Or open the booking page in a new tab
